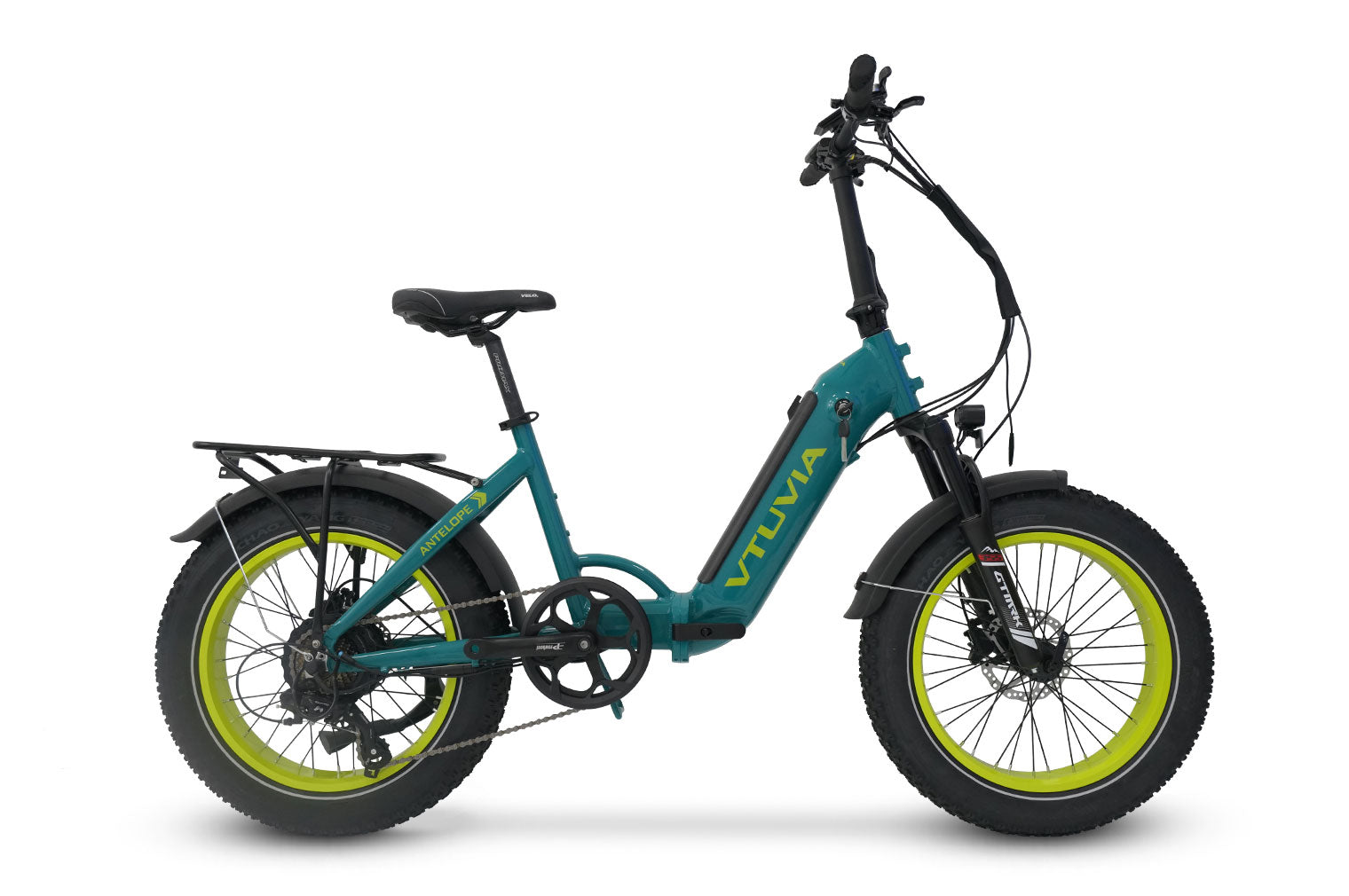

Easy Access E-Bike

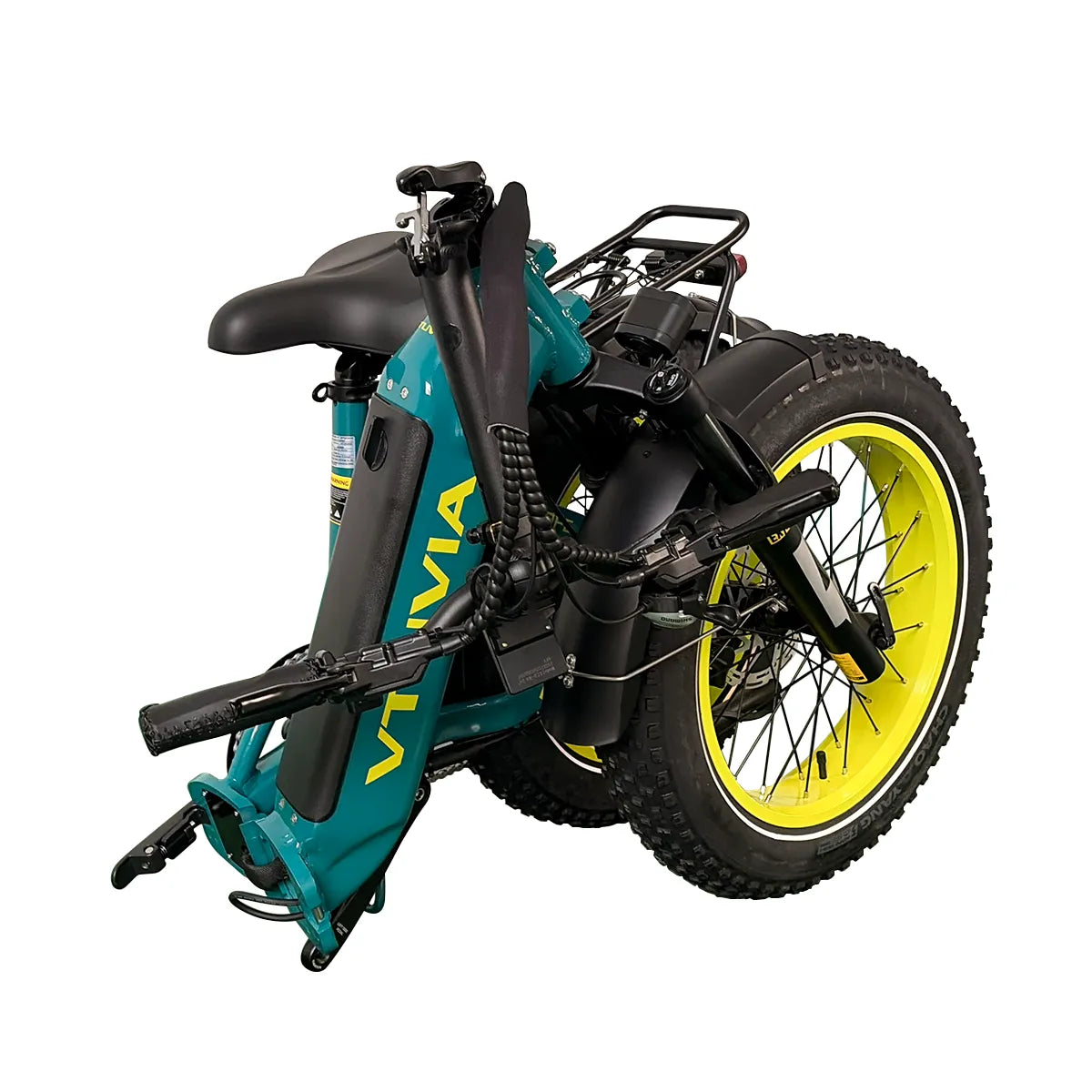

The SX20 offers a reduced span height of only 15.4 inches, ensuring easy mounting and dismounting. With its low stand-over height and folding frame, this electric bike accommodates riders of various sizes. Enjoy a smooth ride with the 5-level pedal-assist system and 4" fat tires. When it's time to store or transport, the SX20 effortlessly folds, adding convenience to your cycling experience.

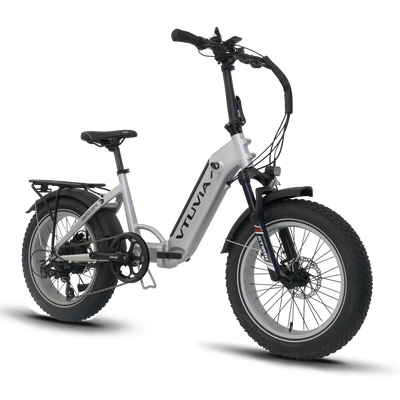

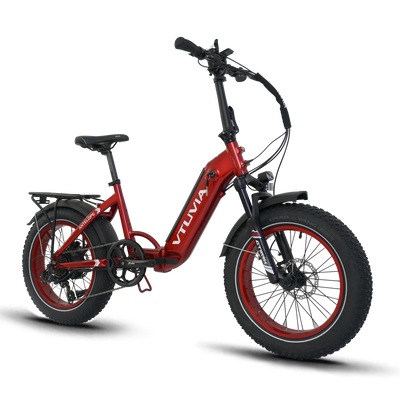

Foldable
Step-thru Frame
20'' * 4.0 Tires
Anti-puncture Reflective
5-level
Intelligent Pedal Assist
Thumb
Throttle


Upgraded 750w Brushless Gear Hub Motor
Boasting a powerful 750W motor (peak power of 1100W) with hub motor technology and 7-gear Shimano shift system the SX20 has a smooth and controlled ride. What's more you can choose between class 2 or 3 electric bike settings for a personalized riding experience. It's the perfect bike for getting around.
750W
Brushless Gear Motor
80Nm
Max Torque
7 Gears
Shimano
Class 2, or 3
Speed
Enhanced Comfort and Safety
Equipped with a hydraulic front suspension fork, the SX20 absorbs shocks and vibrations, ensuring a comfortable ride even on rough terrain. The Logan hydraulic disc brakes offer reliable stopping power, enhancing your safety on the road. The bright LCD display provides essential ride information, while the front dual lights ensure visibility in low-light conditions.
Logan Hydraulic
Front and Rear Brakes
6061 Aluminum Alloy
Frame
52 Miles
Per Charge Range
LCD Display
Colorful

Features
From off-road adventures to daily commutes, our ebikes have you covered.

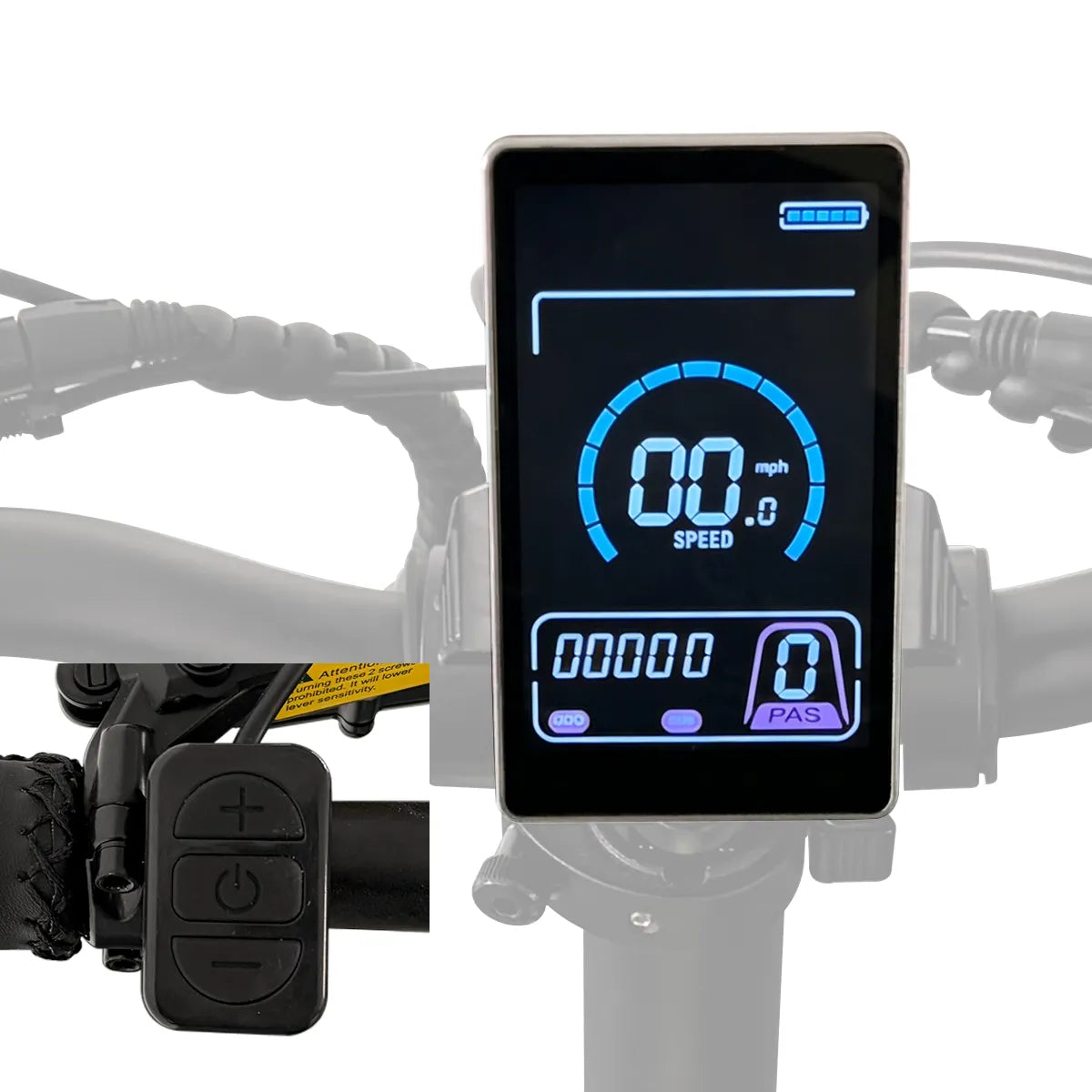

Bright LCD
The bright display shows your speed, odometer, battery level, and more, ensuring easy visibility in all conditions.

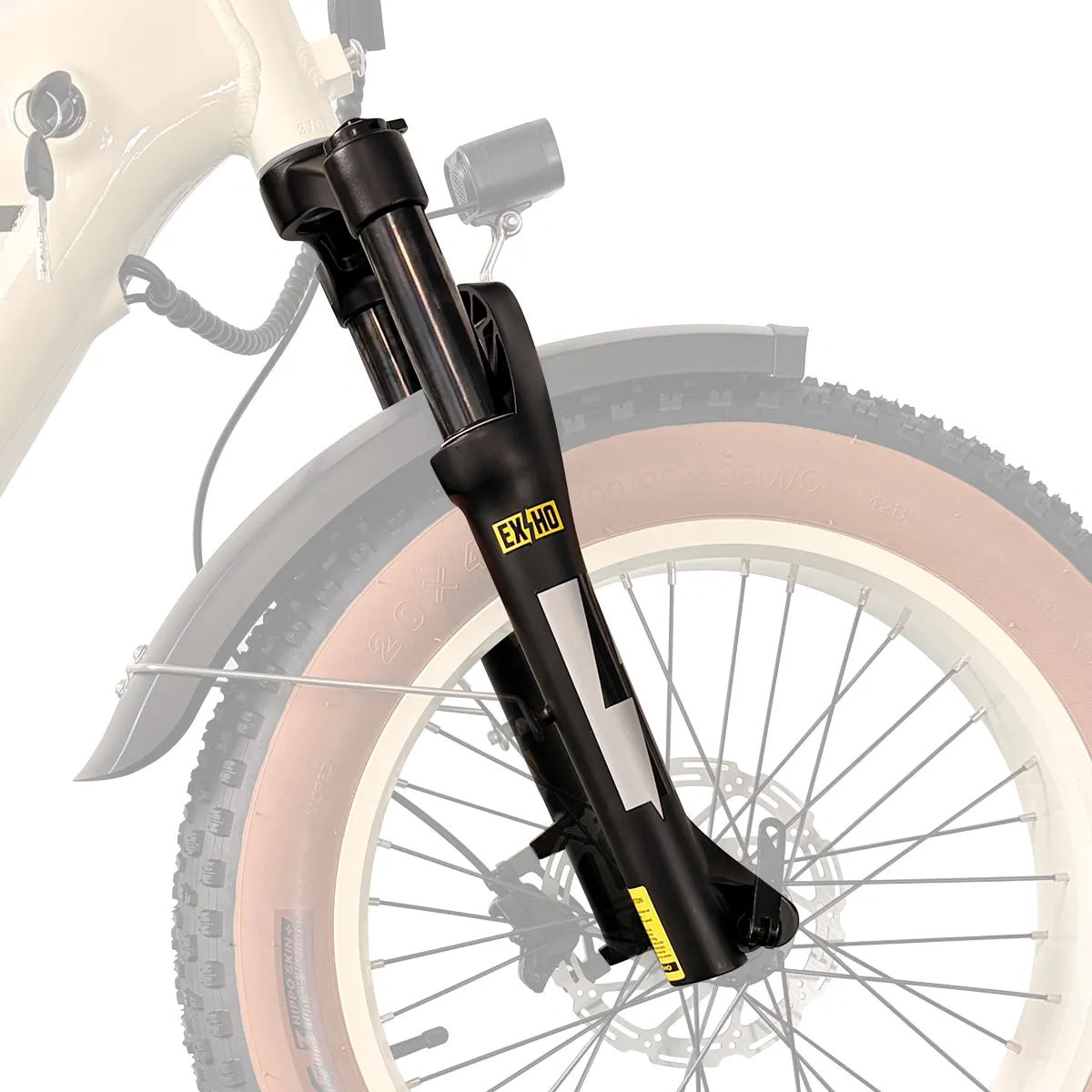

Hydraulic Suspension
Hydraulic suspension system offers a versatile ride. Choose between open and locked for optimal comfort and control depending on your needs and terrain.

750W Motor
Bring all the gear you want thanks to the 750W motor and its 80nm of torque.

20 Inch Fat Tires
The 20-inch fat tires offer the stability and traction you need for a a smooth ride with cargo and difficult terrains.

VELO Saddle
Enjoy a comfortable ride with the premium Velo saddle, providing ergonomic support for long journeys.
Product Details
From off-road adventures to daily commutes, our ebikes have you covered.
- Measurements
- Specification
- SX20 VS SF20

A | Total length | 65" |
B | Handlebar height | 45-50" |
C | Wheelbase | 45" |
D | Minimum seat height | 24" |
E | Maximum seat height | 33" |
F | Chain Stay Length | 16.5" |
G | Standover Height | 15.4" |
H | Top Tube Length | 22.5" |
I | Wheel Diameter | 23 |
J | Head Tube Length | 5.5" |
K | Handlebar Length | 24" |
L | Minimum Seat to Floor | 31" |
Foldable Size 25.2"*33.5"*11" |
Motor | 48V*750W rear brushless |
Battery | 48V 14Ah LG removable lithium battery |
Throttle | Thumb |
Ranges | 52 miles |
Battery Weight | 9.35 lbs |
Recommended Height | 5'0"-6'2" |
Max Load | 330 lbs |
Bike Weight | 70 lbs (battery included) |
Charger | US standard 2.0 A smart charger |
Charging Time | 5-6 hours |
Light | LED Front Light |
Fat Tires | 20" * 4.0 CHAOYANG Anti-puncture Reflective |
Pedal Assist | 0~5 levels |
Front Fork | Suspension Front Fork |
Derailleur | Shimano 7 Gears Rear Derailleur |
Brake Type | LOGAN Hydraulic Disc Brakes |

FAQs
Recommend Height for the SX20 is 5'0"-6'2"
The licensing requirements for fat tire electric bikes vary depending on local regulations. In most cases, though, you do not need a license to ride one.
